CONEXÕES - Colares - Colar de Encaixe (SW)

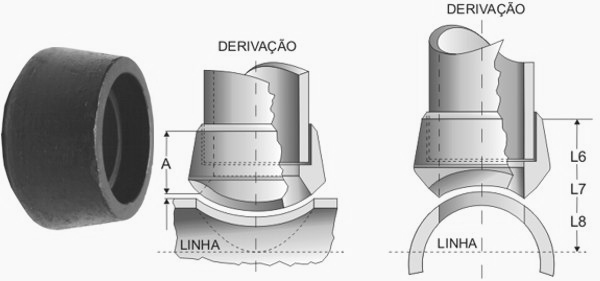

FIGURA

CARACTERÍSTICAS

  • Material conforme indicações de materiais para conexões:
    – Aço Carbono ASTM A 105;
    – Aço Inoxidável AISI 304 ou 304L;
    – Aço Inoxidável AISI 316 ou 316L;
    – Outras Ligas;
  • Extremidades Socketwelding (SW).

Construção da válvula e figuras

Diâmetro NominalStandard
LinhaDerivaçãoAPeso aprox.
Pol.Pol.mmkg
1/2″1/2″21,820,063
3/4″3/4″26,590,113
1″1″29,360,199
1.1/4″1.1/4″30,550,290
1.1/2″1.1/2″32,590,385
2″2″33,330,621
2.1/2″2.1/2″46,031,020
3″3″50,801,701
3.1/2″3.1/2″52,381,950
4″4″55,562,993
5″5″61,914,082
6″6″65,087,030
8″8″69,859,979
10″10″76,2016,32
Diâm. nom.
Linha		Tubos
Tipos		Dim. LDiâmetro nominal da derivação em polegada
1/8″1/4″3/8″1/2″3/4″1″1.1/4″1.1/2″2″2.1/2″3″3.1/2″4″5″6″8″10″
mmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmm
3/8″S-40L617,4617,46

160L8  3/8″1/2″
1/2″S-40L619,4419,4424,2022,62

160L8    3/4″
3/4″S-40L622,2222,2226,9825,4026,98

160L8   33,33 1″
1″S-40L625,4025,4030,1628,5727,7830,95

160L8   36,5138,89 1.1/4″
1.1/4″S-40L629,7629,7634,5232,9432,1439,2934,52

160L8   35,3243,2344,45 1.1/2″
1.1/2″S-40L632,9432,9437,7036,1135,3242,4641,6740,08

160L8   38,4943,2347,6247,22 2″
2″S-40L638,8938,8942,8642,0641,2748,4147,6246,0350,80

160L8   44,4549,2149,2153,1853,18 2.1/2″
2.1/2″S-40L645,2445,2450,0048,4147,6254,7653,9752,3857,1558,73

160L8   50,8055,5655,5654,3759,5371,43 3″
3″S-40L653,1853,1857,9456,3455,5662,7061,9160,3265,0864,2969,05

160L8   58,7363,5063,5062,3065,0879,37  3.1/2″
3.1/2″S-40L659,5359,5364,2962,7061,9169,0568,2666,6771,4370,6474,6180,16

160L8   65,0969,8569,8568,6571,43    4″
4″S-40L665,9065,9070,6469,0568,2675,4074,6173,0276,9976,9980,9684,1384,93

160L8   71,4376,2076,2075,0077,7882,55    5″
5″S-40L679,3779,3784,1382,5581,7588,9088,1686,5191,2890,4894,4597,6397,6399,21

160L8   84,9389,6989,6988,5091,2896,10     6″
6″S-40L692,8692,8697,6396,0495,25102,40101,60100,00104,80104,00107,90111,10111,10118,30113,50

160L8   98,42103,20103,20102,00104,80109,50      8″
8″S-40L6118,30118,30123,00121,40120,60127,80127,00125,40130,20129,40133,40136,50136,50143,70139,70130,20

160L8   123,80128,60128,60127,40130,20134,90       10″
10″S-40L6145,20145,20150,00148,40147,60154,80154,00152,40157,20156,40160,30163,50163,50170,70166,70167,50161,10

160L8   150,80155,60155,60154,40157,20161,90
12″S-40L6170,70170,70175,40173,80173,00180,20179,40177,80182,60181,80185,70188,90188,90196,00192,10192,90188,90

160L8   176,20181,00181,00179,80182,60187,30
14″S-40L6186,50186,50191,30189,70188,90196,10195,30193,70198,40197,60201,60204,80204,80211,90208,00208,80204,80

160L8   192,00196,80196,80195,60198,40203,20
16″S-40L6211,90211,90216,70215,10214,30221,50220,70219,10223,90223,00227,00230,20230,20237,30233,40234,20230,20

160L8   217,50222,20222,20221,00223,90228,60
18″S-40L6237,30237,30242,10240,50239,70246,90246,10244,50249,20248,40252,40255,60255,60262,70258,80259,60255,60

160L8   242,90247,70247,70246,40249,2254,0
20″S-40L6262,70262,70267,50265,90265,10272,30271,50269,90274,60273,80277,80281,00281,00288,10284,20285,00281,00

160L8   268,30273,10273,10271,80274,60279,40
24″S-40L6313,50313,50318,30316,70315,90323,10322,30320,70325,40324,60328,60331,80331,80338,90335,00335,80331,80

160L8   319,10323,90323,90322,60325,40330,20
Distância para a solda (1)1,581,581,581,581,581,581,581,581,582,382,382,383,173,173,173,963,96
