CONEXÕES - Colares - Colar com Rosca

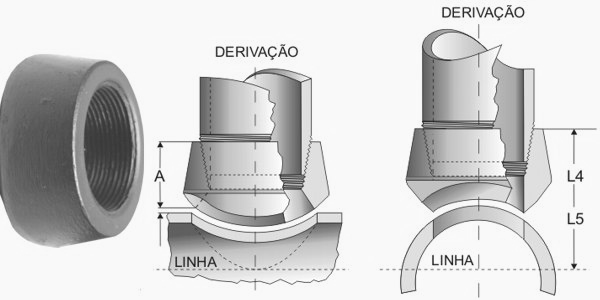

FIGURA

CARACTERÍSTICAS

  • Material conforme indicações de materiais para conexões:
    – Aço Carbono ASTM A 105;
    – Aço Inoxidável AISI 304 ou 304L;
    – Aço Inoxidável AISI 316 ou 316L;
    – Outras Ligas;
  • Extremidades Rosca
    – NPT;
    – BSP.

Construção da válvula e figuras

Diâmetro NominalStandard e 3000Lbs
LinhaDerivaçãoAPeso aprox.
Pol.Pol.mmkg
1/2″1/2″24,600,068
3/4″3/4″28,170,113
1″1″30,950,204
1.1/4″1.1/4″32,540,317
1.1/2″1.1/2″34,130,408
2″2″34,130,635
2.1/2″2.1/2″46,031,134
3″3″50,801,950
3.1/2″3.1/2″52,382,041
4″4″55,563,084
5″5″61,914,173
6″6″65,087,121
8″8″69,8510,20
10″10″76,2016,55
Diâm. Nom.
Linha		Tubo
Sched.
Libras		Dim. LDiâmetro nominal da derivação em polegada
1/8″1/4″3/8″1/2″3/4″1″1.1/4″1.1/2″2″2.1/2″3″3.1/2″4″5″6″8″10″
mmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmm
3/8″Std. e 3000L426,9826,98
600L526,98–3/8″1/2″
1/2″Std. e 3000L428,9728,9732,9436,90
600L528,9732,9440,87–3/4″
3/4″Std. e 3000L431,7531,7535,7140,0843,25
600L531,7535,7140,0846,03–1″
1″Std. e 3000L434,9234,9238,8943,2544,8449,21
600L534,9238,8943,2544,8454,76–1.1/4″
1.1/4″Std. e 3000L439,2939,2943,2547,6249,2155,1655,16
600L539,2943,2547,6249,2155,1661,51–1.1/2″
1.1/2″Std. e 3000L442,4642,4646,4350,8052,3858,3459,5359,92
600L542,4646,4350,8052,3858,3459,5363,50–2″
2″Std. e 3000L448,4148,4152,3856,7558,3464,2965,4866,2765,88
600L548,4152,3856,7558,3464,2965,4866,2773,82–2.1/2″
2.1/2″Std. e 3000L454,7654,7658,7363,1064,6970,6471,8372,6276,2084,93
600L554,7658,7363,1064,6970,6471,8372,6276,2096,83–3″
3″Std. e 3000L462,7062,7066,6771,0472,6278,5879,7780,5684,1392,8697,63
600L562,7066,6771,0472,6278,5879,7780,5684,1392,86––3.1/2″
3.1/2″Std. e 3000L470,6470,6473,0377,3978,9784,9386,1286,9190,4899,21104,0105,6
600L570,673,077,479,084,986,186,990,599,2104,0––4″
4″Std. e 3000L475,4075,4079,3779,8085,3291,2892,4793,2696,83105,6110,3113,5115,9
6000L575,4079,3783,7485,3291,2892,4793,2696,83105,6110,3113,5––5″
5″Std. e 3000L488,9088,9092,8697,2398,80104,8106,0106,8110,3119,1123,8127,0131,0135,7
6000L588,9092,8697,2398,80104,8106,0106,8110,3119,1123,8127,0131,0––6″
6″Std. e 3000L4102,4102,4106,4110,7112,3118,3119,5120,2123,8132,5137,3140,5144,5154,0152,4
6000L5102,4106,4110,7112,3118,3119,5120,2123,8132,5137,3140,5144,5154,0––8″
8″Std. e 3000L4127,8127,8131,8136,1137,7143,7144,8145,7149,2157,9162,7165,9169,9179,4181,0183,3
6000L5127,8131,8136,1137,7143,7144,8145,7149,2157,9162,7165,9169,9179,4–––10″
10″Std. e 3000L4154,8154,8158,8163,1164,7170,7171,8172,6176,2184,9189,7192,9196,9206,4208,0210,3216,7
6000L5154,8158,8163,1164,7170,7171,8172,6176,2184,9189,7192,9196,9206,4––––
12″Std. e 3000L4180,2180,2184,1188,5190,1196,0197,2198,0201,6210,3315,1218,3222,2231,8233,4235,7243,7
6000L5180,2184,1188,5190,1196,0197,2198,0201,6210,3315,1218,3222,2231,8––––
14″Std. e 3000L4196,0196,0200,0204,4206,0211,9213,1213,9217,5226,2231,0234,2238,1247,7249,2251,6259,6
6000L5196,0200,0204,4206,0211,9213,1213,9217,5226,2231,0234,2238,1247,7––––
16″Std. e 3000L4221,4221,4225,4229,8231,4237,4238,5239,3242,9251,6256,4259,6263,5273,0274,6277,0285,0
6000L5221,4225,4229,8231,4237,3238,5239,3242,9251,6256,4259,6263,5273,0––––
18″Std. e 3000L4246,9246,9250,8255,2256,8262,7263,9264,7268,3277,0281,8285,0288,9298,4300,0302,4310,4
6000L5246,9250,8255,2256,8262,7263,9264,7268,3277,0281,8285,0288,9298,4––––
20″Std. e 3000L4272,2272,2276,2280,6282,2288,1289,3290,1293,7302,4307,2310,4314,3323,9325,4327,8335,7
6000L5272,2276,2280,6282,2288,1289,3290,2293,7302,4307,2310,4314,3323,9––––
24″Std. e 3000L4323,0323,0327,0331,4333,0338,9350,0340,9344,5353,2358,0361,2365,1374,6376,2378,6386,5
6000L5323,0327,0331,4333,0338,9350,0351,6344,5353,2358,0361,2365,1374,6––––
Distância para a solda (1)1,581,581,581,581,581,581,581,581,582,382,382,383,173,173,173,963,96
